Development Kit¶
The W-BACnet Development Kit simplifies the evaluation and prototyping of the W-BACnet module. The kit contains the parts needed to build a prototype and integrate it into your product, which includes:
- 2x W-BACnet Devices
- 1x W-BACnet Development Board
- 1x W-BACnet Shield
- 5x W-BACnet OEM Modules
- 1x Patch Antenna
- 1x Dipole Antenna
- 1x Outdoor Dome Antenna
- 1x Micro USB Cable
The W-BACnet Development Board has the W-BACnet module mounted. The board is powered by USB or the pin headers. A development shield with an RS485 interface is included and can be attached to the pin headers. The shield also includes headers for the SPI or UART management pins. The module with the shield attached is shown in the figure below.
Demonstration video¶
The video embedded below, "One-Hour Engineering Prototype Challenge", demonstrates how prototyping can be done from scratch using the W-BACnet development kit.
Powering the development board¶
The development board can be powered using the included USB cable, by connecting it to the J6 micro USB port, labeled "USB IMCU". If the board does not power on using this method, confirm that this port is selected by the power supply selector (S1).
The jumpers and switches are factory set and should not be changed. In the event of a malfunction, remove the shield from the main board and check the jumpers and the position of the DIP switch positions.
Switch S1 should be set to "USB IMCU", while J1, J9 and J10 header pins should be connected with jumpers. See the jumper positions in the picture below.
For J1, VDD and VDD MIRA should be connected. J9 and J10 are reserved.

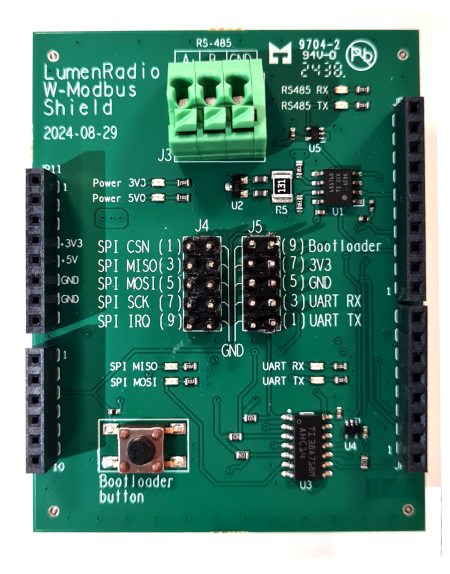

Shield¶
The shield has additional components to simplify getting started with the W-BACnet Module, like an RS485 interface (J3), SPI (J4) and UART
management (pins JP12.5 and JP12.8). The shield is
powered by the development board.
Note that the LED's, three pole switch, and DIP switch are not used by the W-BACnet module; they are reserved for future use. Configure the device using the SPI or UART management interfaces.
Pins¶
The pins for the W-BACnet module can be found in the Pin assignment section.
Relevant pins for the shield can be found below. UART_TXD and UART_RXD pins
are shown below so the RS485 IC can be bypassed.
| Pin | Name | Pin type | Description |
|---|---|---|---|
| J4.1 | CS | Digital output | SPI Chip select, active low |
| J4.3 | MISO | Digital output | SPI Master In, Slave Out |
| J4.5 | MOSI | Digital input | SPI Master Out, Slave In |
| J4.7 | SCK | Digital input | SPI Clock |
| J4.9 | IRQ | Digital output | SPI Interrupt signal, active low |
| JP12.2 | UART_TXD | Digital output | UART TXD |
| JP1.4 | UART_RXD | Digital input | UART RXD (3.3V Max) |
| JP12.5 | UART_MGMT_TXD | Digital output | UART Management TXD |
| JP12.8 | UART_MGMT_RXD | Digital input | UART Management RXD (3.3V Max) |
| JP10.3 | BOOTLOADER / Push Button | Digital input | Bootloader entry (3.3V Max) (Pull-up) |
Antennas¶
The kit includes 3 different antennas of varying size, form factor and performance for evaluation.
Compact Patch Antenna¶
The Molex antenna is a flat patch adhesive mount antenna for ABS plastic enclosure. It is an indoor ultra-compact antenna that has a double-sided adhesive tape for easy "peel and stick" mounting. The antenna is designed for mounting inside on a PC/ABS plastic enclosure of 1.5 mm thickness. This antenna has a moderate performance compared to the other antennas, and range would typically be limited to 500 meters line of sight when used by the W-BACnet module.
| Molex product number | Digi-Key order code |
|---|---|
| 1461530100 | WM12218-ND |
 |
Dome antenna for outdoor use¶
The dome antenna can be used for relatively compact mounting in outdoor environments. This antenna needs to be mounted on a grounded metal surface for optimal performance. Full range performance of up to 1500 meters line of sight can be expected using this antenna together with the W-BACnet module.
| Linx Technologies product number | Digi-Key order code |
|---|---|
| ANT-DB1-WRT-MON-UFL | ANT-DB1-WRT-MON-UFL-ND |
 |
2.15 dBi Omni antenna¶
The omni-directional antenna from LumenRadio provides the best performance out of the options provided with the development kit. Since it uses an RP-TNC male connector, it requires an IPEX adapter cable. Full range performance of up to 1500 meters line of sight can be expected using this antenna with the W-BACnet module.
| Lumenradio order code | Antenna cable order code |
|---|---|
| 104-1001 | 102-2006 |
 |
